Product Range
Complete range of industrial valves for every application.

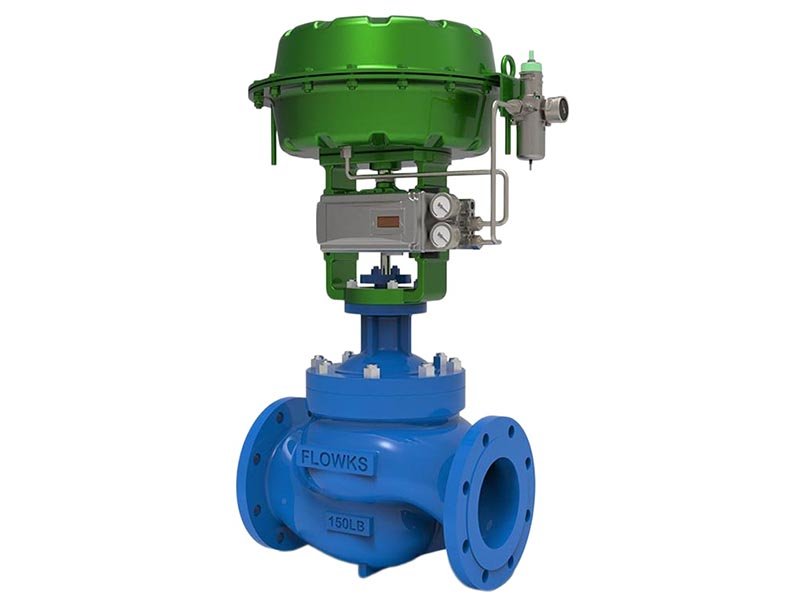

High Performance Linear Stroke Control Valve
Quick Specs Size: 1/2" - 12" (DN15 - DN300) Pressure: Class 150 - 600 Standard: IEC 60534, API 608, ASME B16.34 Body Materials: A216 WCB, A351 CF8M, A182 F316, A182 F51 Seat/Trim Materials: PTFE, PEEK, Stellite 6, 316 SS, 17-4PH SS Design: Linear stroke, plug-type trim, pneumatic/electric actuated, equal-percentage or linear flow characteristic What This Valve Is——and Why It’s the One Most Projects End Up Specifying A linear stroke control valve moves the plug straight up and down——a vertical stroke along the valve stem axis, rather than rotating a ball or disc through a quarter-turn arc. That linear motion gives you something rotary valves struggle with: precise, repeatable flow modulation across the full travel range, with a flow characteristic curve you can actually depend on for process loop tuning. This is the workhorse control valve——the one that shows up on the majority of process control specifications across oil & gas, petrochemical, chemical, and power generation applications. Comparable in design philosophy to the Japanese CV3000 series, the FLOWKS high performance linear stroke control valve covers the same functional territory: robust body construction, multiple trim options for different pressure drops and media conditions, and flow characteristics engineered to match what the control system needs rather than forcing the system to compensate for what the valve delivers. The Plug and Cage——Where the Real Work Happens The trim assembly is what separates a functional control valve from a body with a hole in it. Inside the cage, the plug moves vertically through its travel range, and the gap between the plug profile and the cage windows defines the flow area at each position. FLOWKS offers two primary flow characteristics: equal-percentage and linear. Equal-percentage is the default choice for most process applications——small flow changes at low travel positions (stable control near minimum flow), progressively larger increments at higher positions (responsive control near maximum throughput). Linear characteristic delivers constant flow increment per unit of travel——straightforward, predictable, used where the process loop needs a direct proportional relationship between valve position and flow rate. The characteristic selection isn’t a guess——it’s determined by the process dynamics, the controller tuning requirements, and the installed gain curve the instrument engineer needs to achieve stable loop performance. Both plug profiles are available across the full size range; you specify what the control loop requires, not what happens to be in stock. Trim Material Options——Match the Material to What the Process Will Do to It Trim material selection determines whether your valve runs reliably for five years or gets rebuilt after two seasons. Standard trim configurations include 316 stainless steel for general process service, 17-4PH precipitation-hardening stainless for higher mechanical strength and moderate corrosion resistance, and Stellite 6 hard-facing overlay on the plug and cage seating surfaces for applications where erosion, cavitation damage, or high-velocity impingement would wear through standard stainless in months. The Stellite overlay isn’t a thin cosmetic coating——it’s a functional wear layer applied to the critical sealing and flow-path surfaces, extending trim service life under conditions that destroy softer materials. For elevated temperature applications, FLOWKS provides extended bonnet designs that move the packing area away from the body heat zone, keeping the stem packing within its operating temperature range even when the process media runs at several hundred degrees. Body Materials and Pressure Ratings A216 WCB carbon steel covers the majority of general-purpose applications——hydrocarbon lines, water service, steam distribution at moderate pressures and temperatures where carbon steel’s mechanical properties and corrosion resistance are adequate for the intended service duration. A351 CF8M stainless steps in for corrosive media containing chlorides, acids, and process chemicals that would attack carbon steel. A182 F316 handles higher-corrosion-resistance requirements where CF8M’s performance ceiling gets challenged. A182 F51 duplex provides both corrosion resistance and higher mechanical strength——used where the process demands both, typically in offshore and coastal installations where salt exposure adds an external corrosion dimension to the internal media challenge. Pressure ratings span Class 150 through Class 600——covering the range where linear stroke control valves deliver their best combination of flow control precision, sealing reliability, and cost efficiency. Pneumatic or Electric——The Actuator Choice Depends on How Your Plant Runs FLOWKS linear stroke control valves accept both pneumatic and electric actuator mounting. Pneumatic actuators (diaphragm or...
High Performance Linear Stroke Control Valve with Handwheel
Quick Specs Size: 1/2" - 12" (DN15 - DN300) Pressure: Class 150 - 600 Standard: IEC 60534, API 608, ASME B16.34 Body Materials: A216 WCB, A351 CF8M, A182 F316, A182 F51 Seat/Trim Materials: PTFE, PEEK, Stellite 6, 316 SS, 17-4PH SS Design: Linear stroke, plug-type trim, pneumatic/electric actuated with integrated handwheel, equal-percentage or linear flow characteristic Same Valve, One Critical Addition Everything about this valve——the plug and cage trim, the flow characteristics, the body materials, the pressure ratings——is identical to the standard FLOWKS high performance linear stroke control valve. What's different is the handwheel mounted on the actuator assembly. That handwheel gives you manual control over the valve position when the actuator can't do the job——air supply failure, power outage, actuator maintenance, or commissioning and startup sequences where you need to set the valve to a specific position by hand before the control system takes over. On a process line running critical flow, losing valve control means losing process control. The handwheel isn't a backup for lazy days——it's emergency access to the valve stem when the automated system can't reach it. When the Handwheel Gets Used——and It's Not Just During Emergencies Plant startup is where the handwheel earns its value first. Before the control system is live, before the instrument air lines are pressurized, before the DCS has its loop configurations loaded——the valve needs to be positioned manually to establish initial flow conditions. An operator walks up, turns the handwheel, sets the valve to the startup position the process engineer specified, and holds it there until the automated system is ready to take command. Without the handwheel, you'd need to pressurize the air system first, stroke the valve through the actuator, and verify position through the control room——a longer sequence that delays startup and adds coordination complexity. Commissioning and loop tuning is the second scenario. When the instrument team is calibrating the control loop, they need to verify valve response at specific travel positions——10%, 25%, 50%, 75%, full open. Walking the valve through those positions manually with the handwheel is faster and more intuitive than commanding each step through the DCS, especially when the loop isn't yet configured and the actuator is responding to ad-hoc signals rather than a tuned control algorithm. The handwheel lets the commissioning team feel the valve's mechanical response directly——you can sense stiffness, detect plug-seat contact, verify that the stem moves freely through the full travel range without binding or hesitation. That hands-on verification is something remote actuator control can't provide. Actuator maintenance is the third. When the pneumatic actuator needs diaphragm replacement, or the electric actuator requires motor service, the valve has to stay in a safe position while the actuator is offline. The handwheel locks the valve at the position the process requires——closed for isolation safety, or partially open to maintain minimum flow while the actuator gets serviced. Without that manual hold, you'd need to either bypass the valve with a manual alternative in the piping, or shut down the process section entirely. The handwheel keeps the valve functional during actuator downtime. How the Handwheel Interacts with the Actuator The handwheel doesn't override the actuator——it supplements it. On pneumatic spring-return actuators, the handwheel connects to the stem through a clutch or manual override mechanism that engages when the handwheel is turned and disengages when the actuator resumes operation. You turn the handwheel——the stem moves. The actuator receives air——the handwheel clutch disengages, and the actuator takes over. There's no conflict between manual and automated operation; the mechanism transitions between them without requiring the operator to manually switch modes. On electric actuators, the handwheel typically engages through a declutch mechanism——pull the lever, turn the handwheel, push the lever back to return to motor operation. The transition sequence is simple enough that an operator can execute it in seconds during an emergency. FLOWKS handwheel assemblies are sized to match the actuator's thrust capability. The handwheel diameter, stem connection thread, and override torque rating are calculated to allow a single operator to move the valve through its full travel range against maximum differential pressure——not just at zero-pressure conditions. If you need to close the valve against full line pressure by hand, the handwheel has to deliver enough mechanical advantage to do it. That sizing isn't optional; it's part of the engineering package. Everything Else——Identical to the Standard Configuration Plug and cage trim options: 316 SS, 17-4PH, Stellite 6 hard-facing——same...
Self-Actuated Pressure Regulating Valve
Quick Specs Size: 1/2" - 8" (DN15 - DN200) Pressure: Class 150 - 600 Standard: IEC 60534, ASME B16.34 Body Materials: A216 WCB, A351 CF8M, A182 F316 Seat/Trim Materials: PTFE, PEEK, Stellite 6, 316 SS Design: Self-actuated, no external power source, valve-before-pressure (reducing) and valve-after-pressure (backpressure) configurations No Air Supply. No Electricity. No External Power Source at All. A self-actuated pressure regulating valve doesn't need instrument air, doesn't need a DCS signal, doesn't need an electric actuator——it regulates pressure using the process media's own energy. The valve senses downstream (or upstream) pressure through an internal sensing port, compares that pressure against a pre-loaded spring force, and adjusts the plug position to maintain the set pressure automatically. Higher downstream pressure than the setpoint——the plug moves toward closed, reducing flow and letting pressure drop back toward target. Lower downstream pressure——the spring pushes the plug toward open, allowing more flow and letting pressure climb back. That feedback loop runs continuously, mechanically, without any external intervention. On remote well sites where instrument air doesn't exist, on pipeline branch stations miles from the nearest control room, on utility distribution networks where the cost of installing and maintaining an automated control system per valve exceeds the cost of the valve itself——self-actuated regulation is the practical answer. Two Configurations——Reducing Pressure or Maintaining Backpressure FLOWKS self-actuated pressure regulating valves come in two functional configurations determined by the sensing direction. Valve-after-pressure (commonly called pressure reducing) senses downstream pressure and throttles the valve to maintain a target outlet pressure below the inlet. This is the configuration you use when a high-pressure supply line feeds a lower-pressure distribution system——steam mains feeding low-pressure heating circuits, gas transmission lines feeding distribution networks, hydraulic supply lines feeding lower-pressure actuators. The valve automatically reduces whatever inlet pressure it receives down to the setpoint you've dialed into the spring preload. Valve-before-pressure (commonly called backpressure regulating) senses upstream pressure and throttles the valve to maintain a target inlet pressure above the outlet. This is the configuration you use when you need to hold pressure upstream of the valve——preventing a downstream pressure drop from pulling the upstream system below its minimum operating pressure, maintaining positive pressure on a tank blanketing system, or holding backpressure on a heat exchanger circuit to prevent flashing. The valve closes when upstream pressure drops below setpoint (restricting flow to hold pressure up), and opens when upstream pressure rises above setpoint (relieving excess pressure downstream). The mechanical logic is the same in both configurations——the spring preload defines the setpoint, the sensing port provides the feedback signal, and the plug position responds to the pressure difference between sensed pressure and spring force. What changes is which side of the valve the sensing port reads. How the Spring Sets the Pressure——and How You Adjust It The setpoint is defined by the spring preload——the force the spring exerts against the plug when the sensed pressure is exactly at the target value. Adjusting the setpoint means adjusting the spring compression, which is done through an external adjustment screw or nut on the spring housing. Turn the adjuster clockwise——more spring compression——higher setpoint. Turn counterclockwise——less compression——lower setpoint. The adjustment is continuous within the spring's range, not stepwise——you can set the valve to any pressure value within the rated range, not just to a few preset options. Spring selection matters because each spring covers a specific pressure range. A light spring handles low-pressure setpoints (a few psi to moderate ranges). A heavy spring handles high-pressure setpoints. The spring that ships with the valve is selected based on the setpoint the customer specifies——you don't get a generic spring and hope it covers your operating pressure. If the process requirements change and the setpoint needs to shift outside the original spring's range, the spring gets replaced——not the entire valve. Self-Actuated vs. Automated——When Each Makes Sense Self-actuated regulation trades precision for independence. The valve holds pressure within a band around the setpoint——not at an exact value. The regulation accuracy depends on the spring's linearity, the plug's flow characteristic, and the process flow conditions at the operating point. Typical self-actuated regulation accuracy falls in the ±1-5% range depending on configuration and process dynamics——adequate for...
Fluorine-Lined Regulating Valve
Quick Specs Size: 1/2" - 8" (DN15 - DN200) Pressure: Class 150 - 300 Standard: IEC 60534, ASME B16.34 Body Materials:A216 WCB, A351 CF8M (external body——fluorine-lined internally)Lining Materials: PTFE, PFA, FEP Trim Materials: PTFE-lined plug, PFA-coated cage, 316 SS core structure with fluorine overlay Design: Linear stroke, plug-type trim, pneumatic/electric actuated, full fluorine-lined flow passage When Carbon Steel and Stainless Steel Both Fail——Fluorine Steps In Concentrated sulfuric acid at 98%. Hydrochloric acid at 30%. Chlorine gas. Hydrofluoric acid. Bromine. These are the media that destroy carbon steel in weeks, pit stainless steel in months, and challenge even high-nickel alloys over extended service. A fluorine-lined regulating valve puts a continuous barrier of PTFE, PFA, or FEP between the process media and the metal body——the fluoropolymer lining covers every surface the media touches: the body bore, the seat pocket, the plug surface, the cage windows, the stem shield. The metal body provides structural strength and pressure containment. The lining provides chemical resistance. You get both——rigid structural integrity from the steel shell, and near-universal corrosion resistance from the fluoropolymer barrier that the media can't penetrate, can't dissolve, and can't degrade under normal process temperatures. FLOWKS fluorine-lined regulating valves are designed for precisely this service category where the process chemistry is too aggressive for bare metal trim, but the flow regulation requirement demands control valve precision rather than simple on-off isolation. Most fluoropolymer valve offerings in the market are isolation valves——lined ball valves or lined butterfly valves that give you open or closed, not throttling control. A fluorine-lined regulating valve adds the plug and cage flow modulation capability to the corrosion-resistant lining system, giving you both chemical resistance and process control in a single valve assembly. The Lining System——Not Just a coating, It's a Full Flow Passage Barrier The fluoropolymer lining isn't applied as a thin spray coating——it's a molded lining that covers the complete internal flow passage as a continuous shell. PTFE is the baseline lining material—— chemically inert to virtually all industrial process fluids at temperatures up to its operational limit, with the lowest coefficient of friction in the lining material lineup (smooth internal surfaces that resist fouling and buildup from viscous or precipitating media). PFA offers higher temperature capability and better stress-crack resistance than PTFE——used where the process runs hotter than PTFE's comfort zone or where the lining sees repeated thermal cycling that could cause PTFE to develop micro-cracks over years of service. FEP provides excellent chemical resistance with easier processing characteristics than PTFE——used where the lining geometry requires tighter dimensional control during manufacturing. The lining thickness is engineered for the application, not standardized to a minimum nominal value. High-velocity media with erosive particles requires thicker lining to compensate for gradual surface wear. Low-velocity clean service can run thinner lining without sacrificing service life. The lining thickness decision follows the same logic as trim material selection across the FLOWKS control valve series——match the barrier to what the media will do to it over the intended service duration. Plug and Cage Trim——Fluorine-Coated, Not Bare Metal The plug and cage assembly in a fluorine-lined valve can't use bare metal seating surfaces——the media would attack the trim directly at the sealing contact point. FLOWKS uses PTFE-lined plug surfaces and PFA-coated cage windows to maintain the chemical barrier across the full flow modulation path. The underlying core structure (plug body, cage frame) is 316 stainless steel——providing mechanical rigidity and dimensional stability. The fluoropolymer overlay on the seating surfaces provides the chemical isolation that keeps the metal core from ever touching the process media. The combination gives you trim that throttles precisely (metal core maintains plug profile accuracy under load) and resists corrosion (fluoropolymer overlay keeps the media away from the metal). The trade-off: fluoropolymer seating surfaces are softer than metal hard seats. Soft seats deliver tighter shutoff in clean service——zero leakage class is achievable with PTFE seating under normal closing force. But under high-velocity flow, abrasive media, or frequent cycling between throttling and closed positions, the soft seating surfaces wear faster than Stellite or tungsten carbide hard-facing would. The valve design compensates where it can——lining thickness on the seating zones, optimized plug-to-cage contact geometry, and controlled closing force from the actuator to...
Low Flow Regulating Valve
Quick Specs Size: 1/2" - 1" (DN15 - DN25) Pressure: Class 150 - 600 Standard: IEC 60534, ASME B16.34 Body Materials: A216 WCB, A351 CF8M, A182 F316 Trim Materials: 316 SS, 17-4PH SS, Stellite 6 hard-facing, V-port micro-trim Design: Linear stroke, micro-plug trim, pneumatic/electric actuated, precision Cv down to 0.001 When Cv 0.5 Is Too Much——You Need a Valve That Handles the Decimal Places Standard control valves handle Cv values from single digits up to hundreds——that's the flow range most process applications occupy. But some applications need flow rates measured in drops, not gallons. Sample line injection. Reagent dosing into a reaction vessel. Catalyst addition at precisely controlled rates. Laboratory and pilot-plant scale process loops. Hydraulic system bleed-off at minimal rates. These applications don't need a valve that can pass 50 gallons per minute——they need one that passes 0.01 gallons per minute repeatably, and holds that rate steady when the control loop demands it. A standard Cv 5 valve throttled down to Cv 0.05 isn't controlling flow——it's choking it through a tiny gap near the closed position where flow characteristic accuracy collapses, seat leakage tolerance dominates, and the valve spends 95% of its travel range doing nothing useful. FLOWKS low flow regulating valves are engineered for exactly this territory——travel ranges where the valve actually uses most of its stroke to modulate flow within the required range, not where it sits near closed and fights to maintain a trickle. The trim geometry is designed around small Cv values from the start: micro-plug profiles, restricted cage window configurations, and V-port micro-trim options that deliver equal-percentage or linear characteristics scaled to the actual flow range the process requires. The valve's rated Cv matches the application's maximum flow——not the next size up's minimum flow. That sizing discipline is what makes low flow regulation work. The valve has enough travel range to modulate precisely at the required flow levels, and the trim geometry is designed for those levels specifically. Micro-Plug Trim——The Geometry That Makes Small Flow Work A standard control valve plug has a profile designed for Cv values in the 1-100 range——the plug taper, the cage window geometry, and the flow passage dimensions are sized for flow rates that fill a normal pipe bore. A micro-plug trim has a profile designed for Cv 0.001 to 0.5——the plug is smaller, the cage windows are narrower, and the flow passage is restricted to match the actual flow area the application needs at full open. That geometry difference isn't just scaling down a standard plug——the flow characteristic curve, the plug-to-cage clearance at low travel positions, and the seat sealing geometry all have to be designed for the specific flow range. A standard plug throttled near closed loses characteristic accuracy because the plug profile isn't shaped for precise modulation at 2-5% of rated Cv. A micro-plug designed for that Cv range maintains characteristic accuracy because its profile is shaped for modulation at 20-80% of its rated travel——the same proportional range a standard valve uses at full-scale flow, but shifted down to the actual flow numbers the process needs. V-port micro-trim takes the micro-plug concept and applies a V-shaped notch to the plug profile——giving equal-percentage characteristic behavior at micro-flow levels. The V-notch opening follows the same area-progression logic as V-port ball valves (small incremental area change at low travel, larger increments at high travel), but scaled to the restricted flow passage dimensions of the micro-trim. This gives the low flow valve the same control loop tuning advantage that V-port designs give to larger flow applications——stable control at minimum flow, responsive control at maximum, predictable characteristic behavior across the full travel range. Seat Sealing at Low Flow——Where Leakage Tolerance Becomes the Real Problem At normal flow rates, a control valve's seat leakage class (Class II, III, IV, V, VI per IEC 60534) is a secondary specification——the process can tolerate a few percent of rated Cv leaking past the closed seat because the process flow itself is orders of magnitude larger than the leakage rate. At micro-flow levels, seat leakage becomes the dominant concern. If the valve's rated Cv is 0.05 and the seat leakage at closed position is Class IV (0.01% of rated Cv), the leakage rate is 0.000005 Cv——trivial relative to the rated flow. But if the leakage is Class II (0.5% of rated Cv), the leakage rate is 0.00025 Cv——which is 5% of the rated flow. At low flow levels, the leakage rate isn't a small fraction of the process flow anymore——it's a significant percentage of it. That's why low flow regulating valves require tighter seat leakage classes than standard valves for the same...
Labyrinth Multi-Stage Pressure Reduction Control Valve
Quick Specs Size:1" - 12" (DN25 - DN300) Pressure:Class 150 - 2500 Standard:IEC 60534, ASME B16.34, API 6D (pipeline configurations) Body Materials:A216 WCB, A351 CF8M, A182 F51, A182 F53 Trim Materials: Stellite 6, 316 SS, 17-4PH SS, Inconel 625 overlay Design:Labyrinth multi-stage trim, up to 20+ pressure reduction stages, anti-cavitation, anti-flashing, low-noise High Pressure Drop. High Velocity. High Damage——Unless You Break the Drop into Steps. When a control valve takes a pressure drop from 1000 psi down to 50 psi in a single step, the media velocity through the vena contracta (the narrowest point in the flow passage) reaches extreme levels——hundreds of feet per second in some configurations. That velocity creates three destruction mechanisms simultaneously: cavitation bubbles form when local pressure drops below the vapor pressure, then collapse with explosive force against the trim surfaces; flashing occurs when the downstream pressure stays below vapor pressure and the media partially vaporizes through the valve, creating a high-velocity two-phase flow that erodes metal like sandblasting; and the turbulent velocity itself causes vibration, noise levels exceeding 100 dB, and mechanical fatigue in the trim and body. Single-stage trim handles moderate pressure drops——maybe 100-200 psi differential before cavitation damage starts accumulating. Above that, the valve gets rebuilt every few months, or it fails catastrophically when erosion opens a hole through the cage wall. The labyrinth multi-stage trim breaks the total pressure drop into a series of small incremental steps——each step reduces pressure by a controlled fraction, and the cumulative series brings the media from inlet pressure to outlet pressure without any single step exceeding the cavitation threshold. Instead of 1000 psi dropping to 50 psi in one violent transition, the labyrinth path might take 20 stages: 1000→950→900→850→...→50. Each stage's pressure drop stays below the cavitation initiation threshold, local velocity stays within manageable limits, and the media reaches outlet pressure having passed through a controlled, gradual decompression path rather than a single violent expansion. No cavitation bubbles. No flashing-induced erosion. No destructive vibration. Noise levels drop by 20-40 dB compared to single-stage trim at the same total pressure drop. Trim service life extends from months to years——sometimes decades——because the flow conditions that destroy single-stage trim simply don't exist in the labyrinth flow path. How the Labyrinth Path Works——Turns, Expansions, and Controlled Deceleration The labyrinth trim is a stacked disc assembly——multiple precision-machined discs with intricate flow channels stacked together to form the complete pressure reduction path. Each disc contains a set of flow passages that route the media through a series of turns, expansions, and controlled-direction changes. The turns force the media to change direction——decelerating velocity and converting kinetic energy back into pressure through turbulence dissipation. The expansions increase the flow passage cross-section——allowing the media to spread out and slow down before the next set of turns compresses it again. The cumulative effect: each disc reduces pressure by a specific increment, and the disc stack reduces the total pressure from inlet to outlet through the combined series of increments. The number of discs (and therefore the number of stages) is determined by the total pressure drop the valve needs to handle——higher total drop requires more stages to keep each individual step within safe limits. FLOWKS labyrinth trim configurations range from a few stages for moderate pressure drops up to 20+ stages for extreme pressure reduction from Class 2500 down to low-pressure distribution service. The disc geometry isn't random——it's engineered for the specific pressure drop profile the application requires. The flow channel shape, turn angle, expansion ratio, and passage cross-section on each disc are calculated to deliver the target pressure reduction per stage while maintaining velocity within the design envelope. Different total pressure drops require different disc geometries——a 500 psi total drop uses a different disc stack than a 2000 psi total drop, because the per-stage reduction increment and the velocity management at each stage differ. That's why labyrinth trim is application-specific: the disc stack is engineered for the actual inlet-to-outlet pressure profile, not assembled from a standard stage count hoping the stages happen to match the process conditions. Where Labyrinth Valves Get Specified——The High-Drop Applications Boiler feedwater regulation——incoming water at high pump discharge pressure needs to be reduced to boiler operating pressure, with pressure drops often exceeding 500-1000 psi. Steam pressure...
Lined Wear-Resistant V-Ball Control Valve
Quick Specs Size: 1" - 12" (DN25 - DN300) Pressure:Class 150 - 600 Standard:IEC 60534, API 608, ASME B16.34 Body Materials: A216 WCB, A351 CF8M, A182 F316 (with internal wear-resistant lining) Lining/Hard-facing Materials:Ceramic lining, TCC (tungsten carbide ceramic) spray coating, Stellite 6 overlay Trim Design: V-port ball with wear-resistant surface treatment, spring-loaded seats Design:Rotary V-ball, pneumatic/electric actuated, equal-percentage flow characteristic V-Ball for Flow Control——Hard-Faced for Media That Destroys Soft Trim V-ball control valve gives you equal-percentage flow characteristic, bidirectional sealing, and the shear-cutting action that handles fibrous and particulate media better than any linear plug design. But when the process media carries abrasive solids——mineral slurry, catalyst fines, coal wash tailings, phosphate sludge, ash-laden wastewater——the V-notch edge and the seat sealing surfaces get ground down by the media itself. Standard PTFE seats last weeks in slurry service. Standard stainless trim erodes to leakage within months. The V-ball geometry handles the flow control requirement, but the trim material can't survive what the process pumps through it. That's the gap this valve fills: V-ball flow regulation capability with wear-resistant lining and hard-facing systems that hold up under abrasive, erosive, and high-temperature conditions that destroy conventional soft-seat and standard metal trim. Three Wear-Resistant Options——Ceramic, TCC, and Stellite——Each for Different Destruction Modes FLOWKS lined wear-resistant V-ball control valves offer three distinct wear-resistant surface treatment systems, each targeting a specific destruction mechanism the process media imposes on the trim. Ceramic lining covers the internal flow passage surfaces——the body bore, the seat pocket, and the ball surface contact zones——with a hard, chemically inert ceramic layer. Ceramic is the hardest lining option in the lineup——significantly harder than any metal alloy or carbide coating. It resists abrasive particle impingement (solid particles hitting the surface at flow velocity) and erosion from high-velocity slurry flow better than any alternative. The trade-off: ceramic is brittle. Impact loading from large solid objects (oversized rocks, metal debris in the slurry) can chip or crack the ceramic lining at the impact point. Ceramic lining is the correct choice for fine-particle abrasive slurry service where the erosive mechanism is sustained particle impingement at flow velocity——not where the media carries large impact-loaded objects that would fracture the ceramic layer. TCC (tungsten carbide ceramic) spray coating applies a tungsten carbide-based ceramic composite coating to the ball surface, the seat sealing faces, and the high-velocity flow path zones through the V-notch area. TCC is not as hard as pure ceramic——but it's far harder than Stellite or any standard metal alloy, and it has better impact resistance than ceramic because the tungsten carbide matrix has some ductility that pure ceramic lacks. TCC handles both abrasive erosion and moderate impact loading——solid particles hitting at flow velocity, plus occasional larger objects that would chip pure ceramic. TCC also performs well at elevated temperatures——the tungsten carbide matrix maintains hardness and dimensional stability at temperatures where Stellite softens and where PTFE/PEEK seats would fail entirely. High-temperature abrasive service——hot ash slurry, high-temperature catalyst circulation, steam-containing erosive media——is TCC's primary application domain. Stellite 6 overlay is the established hard-facing option——cobalt-based alloy welded onto the ball seating surface and the seat contact faces. Stellite is less hard than TCC and ceramic, but it has the best impact resistance of the three options——it can absorb large-object impacts without cracking or chipping. Stellite also has proven long-term service history across thousands of installations in erosive process service——the material behavior, wear rate progression, and failure mode characteristics are well-documented and well-understood by maintenance teams who've been working with Stellite-trimmed valves for decades. For applications where the media carries larger abrasive particles or occasional solid objects (mineral processing, mining slurry, coarse ash handling), Stellite's impact toughness makes it the safer choice despite its lower hardness rating compared to TCC and ceramic. The V-Ball Geometry——Same Cutting Edge, Now Protected The V-port ball profile operates identically to the standard FLOWKS V-ball control valve——equal-percentage characteristic, bidirectional sealing from spring-loaded seats, and the V-notch edge that cuts through fibrous and stringy media on every close cycle. The wear-resistant surface treatment doesn't change the V-ball's flow...
High Performance V-Ball Control Valve
Quick Specs Size:1" - 12" (DN25 - DN300) Pressure: Class 150 - 600 Standard: IEC 60534, API 608, ASME B16.34 Body Materials: A216 WCB, A351 CF8M, A182 F316, A182 F51 Seat Materials: PTFE, PEEK, Stellite 6, metal hard seat Trim Design: V-port ball, spring-loaded bidirectional seats, equal-percentage flow characteristic Design:Rotary V-ball, pneumatic/electric actuated, 90° quarter-turn The V Does the Work——Cutting, Modulating, and Sealing in One Geometry A V-ball control valve combines two capabilities that most control valve designs keep separate: precise flow modulation and reliable shutoff. The V-shaped notch in the ball bore creates an equal-percentage flow characteristic——small incremental area change at the beginning of the opening rotation (stable, fine control at low flow), progressively larger increments as the ball continues rotating toward full open (responsive control at high throughput). That characteristic profile matches what most process control loops need for stable operation——which is why equal-percentage has been the default specification for decades across the process industries. But unlike a linear plug valve that gives you equal-percentage modulation but requires a separate tight-shutoff mechanism, the V-ball achieves both in the same trim geometry. At full rotation (90° open), the V-notch provides the maximum flow area the bore allows. At zero rotation (closed position), the ball's solid hemisphere blocks the flow passage entirely, and the spring-loaded seats compress against the ball surface to create a metal-to-metal or soft-seat seal. One ball, two functions——modulation and isolation——without adding a separate seating system for shutoff. Shear Cutting——What the V-Edge Does That Plug Valves Can't Fibrous media. Stringy process streams. Paper pulp. Viscous polymer with entrained solids. Wastewater with suspended fibrous debris. These media types plug linear plug valves——the fibers wrap around the plug tip and cage windows, accumulating until the flow passage gets blocked and the valve stops modulating. A V-ball doesn't accumulate fibers——it cuts them. The V-notch edge slices through fibrous material on every close cycle, the same way a pair of scissors cuts string rather than trying to push it aside. That shear-cutting action is inherent to the V-ball geometry——the V-edge is always in contact with the media during the closing rotation, and it physically shears anything that would otherwise accumulate in the notch opening. Plug valves don't have a cutting edge——they push the media aside, and if the media doesn't push cleanly (fibers, strings, polymer strands), the plug tip becomes an accumulation point. For any application where the process media contains fibrous or stringy contaminants, V-ball is the practical choice——not because of flow characteristic preference, but because the alternative (linear plug) gets plugged and stops working. FLOWKS V-ball control valves use a precision-ground V-notch profile with a defined edge geometry optimized for shear cutting——the edge isn't just the boundary of the notch opening, it's a functional cutting surface designed to slice through process material cleanly on every cycle. The edge sharpness, the notch angle, and the ball surface finish are all specified to maintain effective cutting performance across the valve's service life——not just on the first hundred cycles when the edge is fresh, but after thousands of cycles where edge wear from the media would degrade cutting performance on a less carefully designed V-profile. Bidirectional Sealing——Spring-Loaded Seats That Don't Care Which Way the Flow Runs The ball is positioned between two spring-loaded seat rings——one upstream, one downstream. Each seat ring is independently pressed against the ball surface by its own spring preload. When the valve is closed, both seats seal against the ball simultaneously——the upstream seat seals against downstream pressure, the downstream seat seals against upstream pressure. That bidirectional sealing means the valve holds from both directions independently——a requirement for applications where flow direction reverses during process transients, or where double-block-and-bleed isolation needs both seats sealing before downstream work can proceed. In modulating service, the active seat (the one facing the higher-pressure side) carries the primary sealing load, while the opposite seat maintains backup contact. If the pressure direction reverses, the seat roles swap automatically——the previously backup seat becomes the primary sealing seat, and the former primary seat shifts to backup. No manual seat adjustment. No directional specification needed. The valve seals from both sides at every position, and the seats respond to whatever pressure direction the process imposes. Seat material options follow the same application-matching logic as the FLOWKS ball valve...
Bellows Low Flow Regulating Valve
Quick Specs Size: 1/2" - 1" (DN15 - DN25) Pressure: Class 150 - 600 Standard: IEC 60534, ASME B16.34, ISO 15848 (fugitive emission) Body Materials: A216 WCB, A351 CF8M, A182 F316 Trim Materials: 316 SS, 17-4PH SS, Stellite 6, V-port micro-trim Sealing: Metal bellows stem seal + PTFE/graphite packing backup Design: Linear stroke, micro-plug trim, pneumatic/electric actuated, zero external leakage Two Problems at Once——Tiny Flow and Zero Leakage——and This Valve Solves Both A low flow regulating valve handles the first problem: precise flow modulation at Cv values below what standard trim can effectively control. A bellows-sealed valve handles the second: zero external leakage through the stem packing——the bellows creates a flexible metal barrier between the process media inside the valve and the atmosphere outside, eliminating the stem-to-packing leakage path that conventional packing designs can never fully eliminate. A bellows low flow regulating valve combines both solutions into a single assembly——micro-trim for precise small-flow regulation, and bellows sealing for zero fugitive emission. This is the valve you specify when the process demands both: toxic media that can't leak even a trace amount past the stem (hydrogen sulfide, chlorine, phosgene, vinyl chloride——anything that triggers environmental emission regulations or poses acute toxicity risk to personnel), and flow rates too small for standard trim to modulate effectively. Two separate specifications that converge on the same valve——you can't achieve one with a standard packing design and the other with standard trim. You need both capabilities simultaneously, and that's exactly what this product delivers. The Bellows——How It Seals What Packing Can't Conventional stem packing relies on compression——the packing rings are squeezed around the stem by a gland follower, creating a mechanical seal that blocks the media from leaking through the stem-to-body gap. That compression seal works well at moderate pressures and temperatures——but it's never truly zero leakage. Packing tolerates a defined leakage rate per the applicable standard (ISO 15848, EPA Method 21). Over time, packing compression relaxes, the stem surface wears, and the leakage rate increases until the packing gets re-torqued or replaced. For non-hazardous media (water, steam, general process fluids), that controlled leakage rate is acceptable——a few ppm of fugitive emission from a water valve doesn't trigger regulatory action or safety protocols. For toxic, carcinogenic, pyrophoric, or environmentally regulated media——that same controlled leakage rate is unacceptable. H₂S at 100 ppm exposure threshold. Chlorine gas at 1 ppm IDLH. Phosgene at 0.1 ppm. Vinyl chloride (a confirmed carcinogen with strict emission limits). These media don't have "acceptable" leakage rates——any detectable external leak is a safety incident, a regulatory violation, and a process hazard. Packing can't guarantee zero——it guarantees a rate. Bellows guarantees zero. The metal bellows is a formed, welded, multi-ply stainless (or Inconel for high-temperature service) flexible tube that connects the valve stem to the body bonnet——the bellows moves with the stem as the plug strokes up and down, flexing at each travel position while maintaining a continuous metal barrier between the process cavity and the external atmosphere. There's no packing gap for the media to leak through——the bellows wall is solid metal. The media stays inside the bellows cavity. The atmosphere stays outside. The only way for media to reach the atmosphere through the stem path is through a bellows rupture——and bellows rupture is a detectable, visible failure mode with clear maintenance response, not a gradual leakage increase that accumulates undetected over months. A backup packing set sits above the bellows——not as the primary seal, but as a secondary containment layer in case the bellows ruptures. If the bellows fails, the backup packing provides interim containment until the valve can be taken offline for bellows replacement. The packing isn't there to handle normal operation——it's there for the single failure scenario that the bellows design anticipates and manages rather than ignoring. That dual-seal philosophy (primary bellows + backup packing) is standard practice in bellows-sealed valve design for hazardous media service——it's not an optional extra, it's a mandatory safety architecture feature. Micro-Trim——Same Low Flow Precision as the Standard Low Flow Valve The trim geometry in the bellows low flow valve follows the same micro-plug design philosophy as the standard FLOWKS low flow regulating valve: restricted plug profile, narrow cage windows, V-port micro-trim options, and Cv ratings scaled to the actual flow range the process requires rather than borrowed from a larger trim size throttled near closed. The bellows doesn't...
High Performance Triple Offset control Butterfly Valve
Quick Specs Size: 2" - 48" (DN50 - DN1200) Pressure: Class 150 - 900 Standard: API 609, API 607, ASME B16.34 Body Materials: A216 WCB, A351 CF8M, A182 F51, A182 F53 Seat Materials: Metal seat (laminated stainless + graphite, or solid metal alloy) Design: Triple offset (eccentric shaft + eccentric center + conical seal geometry), torque-sealed, friction-free engagement, 90° quarter-turn Three Offsets——and Why Two Isn't Enough A concentric butterfly valve (zero offsets) seats the disc against the liner by compressing it——the disc rotates into the seat, pushes against it, and the rubber or elastomer liner deforms to create a seal. That compression seating works for low-pressure water and air service, but it has three fundamental limitations: the disc drags across the seat surface during every open-close cycle (friction wear that degrades the liner over time), the seat relies on elastomer elasticity (temperature limits, chemical compatibility limits, aging limits), and the sealing force depends on how hard the disc pushes (limited by the actuator's torque capability and the liner's compression tolerance). A double-offset butterfly valve (also called high-performance) moves the shaft off-center in two directions——offset from the centerline of the disc face, and offset from the centerline of the pipe bore. Those two offsets let the disc lift off the seat immediately as it begins rotating——the disc cam motion separates it from the seat surface within the first few degrees of rotation, reducing friction contact to a single point at the closed position instead of dragging across the full seat face during every cycle. Better than concentric——but the seat is still an elastomer or PTFE liner, and the sealing mechanism is still compression-based. The disc presses the liner at closed position, the liner deforms to seal, and the elastomer's elasticity defines the sealing performance. You still have temperature limits, chemical compatibility limits, and aging limits. Triple offset adds the third eccentricity: the seal geometry itself is conical rather than flat. The sealing surfaces are machined on a cone angle rather than on a flat plane perpendicular to the pipe axis. That conical geometry means the disc engages the seat along the conical surface——the contact point slides along the cone's axis during the final degrees of rotation, rather than pressing flat-on-flat like concentric and double-offset designs. The result: friction-free engagement. The disc doesn't drag across the seat surface during opening or closing——it lifts off immediately (from the first two offsets) and engages the seat along the cone axis (from the third offset) without any sliding friction contact. Zero friction means zero seat wear from cyclic operation. Zero friction means the sealing force is pure torque——the actuator's closing torque pushes the disc along the cone surface until it reaches the seat, and the cone geometry converts that torque into a radial sealing force that's proportional to the applied torque rather than limited by elastomer compression tolerance. You can increase sealing force by increasing actuator torque——the seat doesn't have a compression limit because it's metal, not elastomer. That torque-sealing mechanism is what makes triple offset butterfly valves suitable for high-pressure, high-temperature, and fire-safe applications where elastomer seats can't survive. Metal Seating——No Elastomer, No Temperature Limit, No Aging Triple offset valves use metal seats——laminated stainless steel with graphite layers (the most common configuration for general high-performance service), or solid metal alloy seats for extreme temperature and corrosive applications. The laminated seat consists of thin stainless steel sheets interleaved with graphite layers——the stainless provides structural rigidity and the sealing surface, the graphite provides a conformable layer that compensates for minor surface irregularities between the disc edge and the seat face. That conformability gives laminated metal seats tighter shutoff than solid metal seats——the graphite layer fills micro-gap irregularities that solid metal-to-metal contact would leave open. But the graphite layer also defines the seat's temperature ceiling——graphite oxidizes in air above approximately 450°C, so laminated seats with graphite are limited to applications below that threshold. For higher temperatures (steam service, hot oil, thermal process loops running above 450°C), solid metal alloy seats (typically Stellite-faced or Inconel-based) provide fire-safe, temperature-unlimited sealing——tighter than elastomer, not as tight as laminated with graphite, but capable of operating at temperatures where every non-metallic seat material has failed. Fire-safe performance per API 607: the metal seating system maintains sealing integrity through fire exposure and returns to effective...
Flow Regulating Valve
Quick Specs Size: 6" - 48" (DN150 - DN1200) Pressure: Class 150 - 300 Standard: IEC 60534, AWWA C504 (waterworks configurations), ASME B16.34 Body Materials: A216 WCB, A351 CF8M (stainless for corrosive water treatment) Seat Materials: EPDM, NBR, PTFE, metal hard seat (abrasive water service) Trim Design: Large-bore disc or cylinder trim, equal-percentage or linear flow characteristic Design: Rotary or linear stroke, pneumatic/electric/hydraulic actuated, optimized for high-Cv large-flow regulation Not Precision Dosing——Raw Volume Control at Scale A flow regulating valve for water treatment isn't trying to meter 0.01 gallons per minute into a reactor——it's managing hundreds or thousands of gallons per minute across treatment basins, distribution mains, and discharge channels where the flow rate matters for process performance but the regulation precision requirement is fundamentally different from chemical process control. Water treatment plants don't operate at ±0.5% flow tolerance——they operate at ±3-5% tolerance bands where the treatment chemistry works within a range, not at a point. The valve needs to move large volumes through large bore sizes, modulate the flow rate within the treatment process's acceptable range, and do it reliably under conditions that look nothing like a petrochemical refinery——municipal water supply at varying demand rates, wastewater treatment at fluctuating influent volumes, cooling water circulation at seasonal load variations, reservoir discharge at controlled release rates. These are high-Cv, large-flow applications where the valve's job is volume management, not precision chemistry. FLOWKS flow regulating valves are designed for this specific service category——large bore sizes (6" through 48"), high Cv values (the flow coefficient ratings that matter when you're moving 500 to 5000+ gallons per minute), and regulation accuracy appropriate for water treatment process requirements rather than chemical process loop tolerances. The trim geometry, the actuator sizing, and the flow characteristic profiles are all optimized for high-volume flow modulation——not borrowed from a smaller control valve design and scaled up hoping the proportions still work at DN600 bore size. The Trim——Disc or Cylinder, Depending on the Bore Size and the Regulation Requirement At smaller bore sizes within the flow regulating valve range (6"-12"), the trim uses a modified disc geometry——a contoured disc profile that provides defined flow characteristic behavior as the disc rotates through its modulating range. The disc isn't a flat butterfly plate swinging through the flow passage——it's a shaped element with a profile optimized for flow modulation, providing equal-percentage or linear characteristic behavior across the disc's rotational arc. The disc approach keeps the body compact and the actuator torque manageable at bore sizes where the disc's flow area at each rotational position can deliver the required Cv range without requiring excessive disc travel. At larger bore sizes (12"-48"), cylinder or cage-type trim becomes more practical——a cylindrical plug that moves axially within a cage to modulate flow through cage windows, similar in principle to the linear stroke control valve's plug-and-cage assembly but scaled to the larger bore dimensions and higher Cv ratings that water treatment applications demand. The cage windows define the flow area at each plug position, and the plug profile defines the flow characteristic (equal-percentage or linear) as the plug strokes through its travel range. Cylinder trim at large bore sizes provides more precise flow modulation than disc geometry——the plug-to-cage flow area relationship is more controllable than the disc-to-bore flow area relationship at DN600 and above, where the disc's rotational arc produces large flow area changes per degree of rotation that make fine modulation difficult. The trim selection (disc or cylinder) isn't arbitrary——it's determined by the bore size, the required Cv range, and the regulation precision the process demands. FLOWKS engineering specifies the trim type based on the customer's application parameters——you don't pick disc or cylinder from a catalog, you get the configuration that delivers the right flow characteristic behavior at the right bore size and Cv rating. Water Treatment Media——Not Clean, Not Corrosive-Free, Not Easy on Valve Trim Water treatment media isn't distilled water——it carries suspended solids, biological matter, chemical treatment residues, and occasionally abrasive particles from sediment load. Municipal raw water contains silt, organic debris, and seasonal sediment surges during storm events. Wastewater influent carries suspended solids, biological flocs, and chemical treatment precipitates. Cooling water circulates through systems that accumulate scale, corrosion products, and biological growth....
Technical Overview
Control valves don't just shut off flow—they modulate it. A ball valve opens or closes in a quarter turn; a control valve positions itself at 37%, 62%, or any point along the travel range to maintain the flow rate, pressure, temperature, or liquid level the process control loop demands. That continuous modulation is what separates throttling service from isolation service, and it dictates different trim geometry, different seat materials, different actuator response characteristics. FLOWKS manufactures linear stroke control valves with pneumatic and electric actuators for precise flow regulation across 1/2" through 12" sizes and Class 150–600 pressure ratings. V-ball control valves handle erosive, abrasive, and high-differential-pressure applications with characterised ball openings that combine shutoff capability with modulating control. Butterfly control valves—triple-offset designs—deliver tight shutoff plus throttling in large-diameter, low-pressure-drop service where linear stroke valves become impractical. Specialised configurations include self-actuated pressure regulators that operate without external power, fluorine-lined valves for concentrated acid service, bellows-sealed low-flow valves for toxic and fugitive-emission-sensitive applications, and labyrinth multi-stage pressure reduction trim that eliminates cavitation and flashing across extreme pressure drops. Every FLOWKS control valve starts with the process requirement—what media, what pressure drop, what flow characteristic, what emission standard—and builds the trim, body, and actuator configuration that matches.
FLOWKS control valves provide precise flow regulation, pressure control, and process modulation for oil & gas, petrochemical, chemical, power generation, and water treatment applications. Linear stroke control valves—pneumatic or electric actuated—deliver accurate throttling across 1/2"–12" sizes, Class 150–600, with equal-percentage or linear flow characteristics matched to process loop dynamics. V-ball control valves combine shutoff and modulating control through characterised V-shaped ball openings, with wear-resistant trim options including ceramic, hard alloy, and TCC coated configurations for erosive and abrasive service. High performance triple-offset butterfly control valves offer tight shutoff plus throttling capability in large-diameter, low-pressure-drop applications. Self-actuated pressure regulating valves operate without external power—process pressure itself drives the actuation mechanism for simple, reliable pressure control. Fluorine-lined control valves handle concentrated acid and aggressive chemical media where metal trim would corrode. Low flow regulating valves—including bellows-sealed configurations—provide precise trace-quantity regulation for analytical, sampling, and fugitive-emission-critical service. Labyrinth multi-stage pressure reduction control valves eliminate cavitation and flashing across extreme differential pressure drops through staged energy dissipation within the trim. Flow regulating valves optimise water treatment and distribution system performance with low-pressure-loss disc designs. FLOWKS control valves meet IEC 60534, ISO 15848, and API 608 standards with multiple body materials and trim configurations for every process condition.
Product Downloads
Technical Articles
Read our latest technical articles and industry insights.
Engineering Calculators
Free online engineering calculators for valve selection and sizing.
Industries Using This Product
Applications across various industrial sectors.
Looking for more options?
Explore our complete range of industrial valves or contact us for custom solutions.
